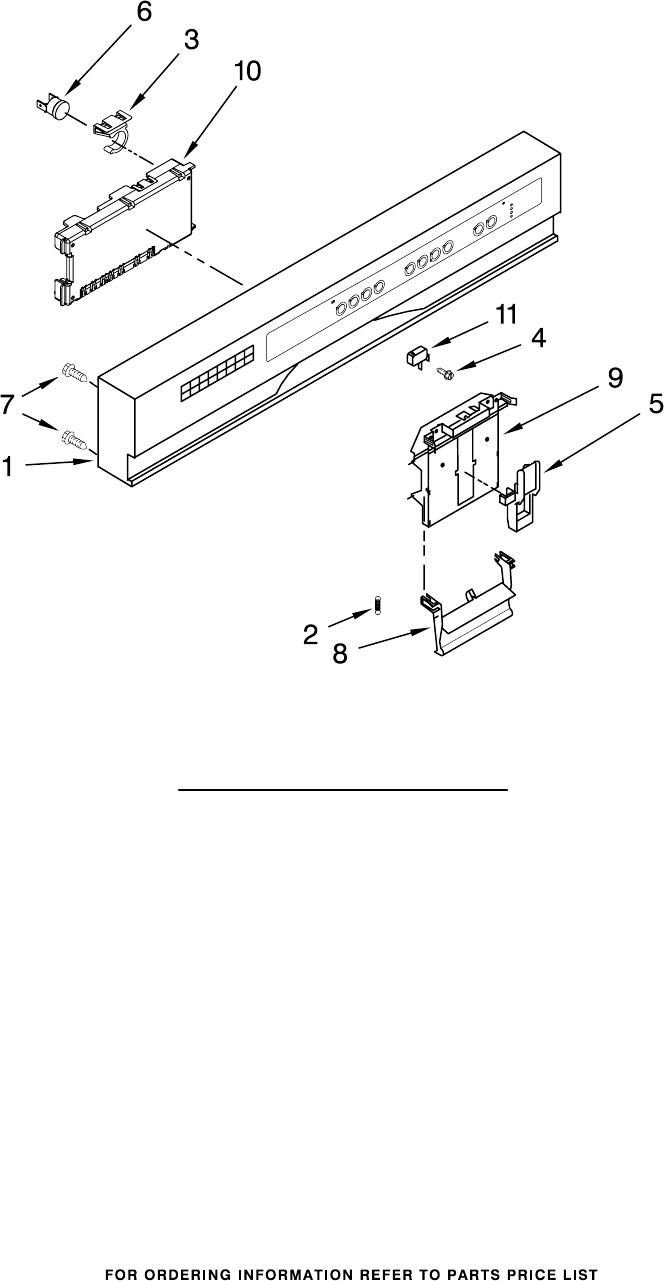

CONTROL PANEL PARTS

For Models: KUDK03ITBL3, KUDK03ITWH3, KUDK03ITBT3, KUDK03ITBS3

(Black) (White) (Biscuit) (Stainless)

W10200482

Illus. Part

No. No. DESCRIPTION

1 Console Assembly

(Includes Insert)

W10084153

Black

W10084154

White

W10084155

Biscuit

2 8268540 Spring, Handle

3 8546546 Clip, BI−Metal

4 3400412 Screw

5 8524471 Actuator, Latch

6 661663 BI−Metal

7 3369051 Screw

8 Handle, Latch

8269117 Black

8269167 White

8269168 Biscuit

9 8524476 Bolt, Latch

W10084142

Control,

Electronic

11 8269209 Switch, Door
