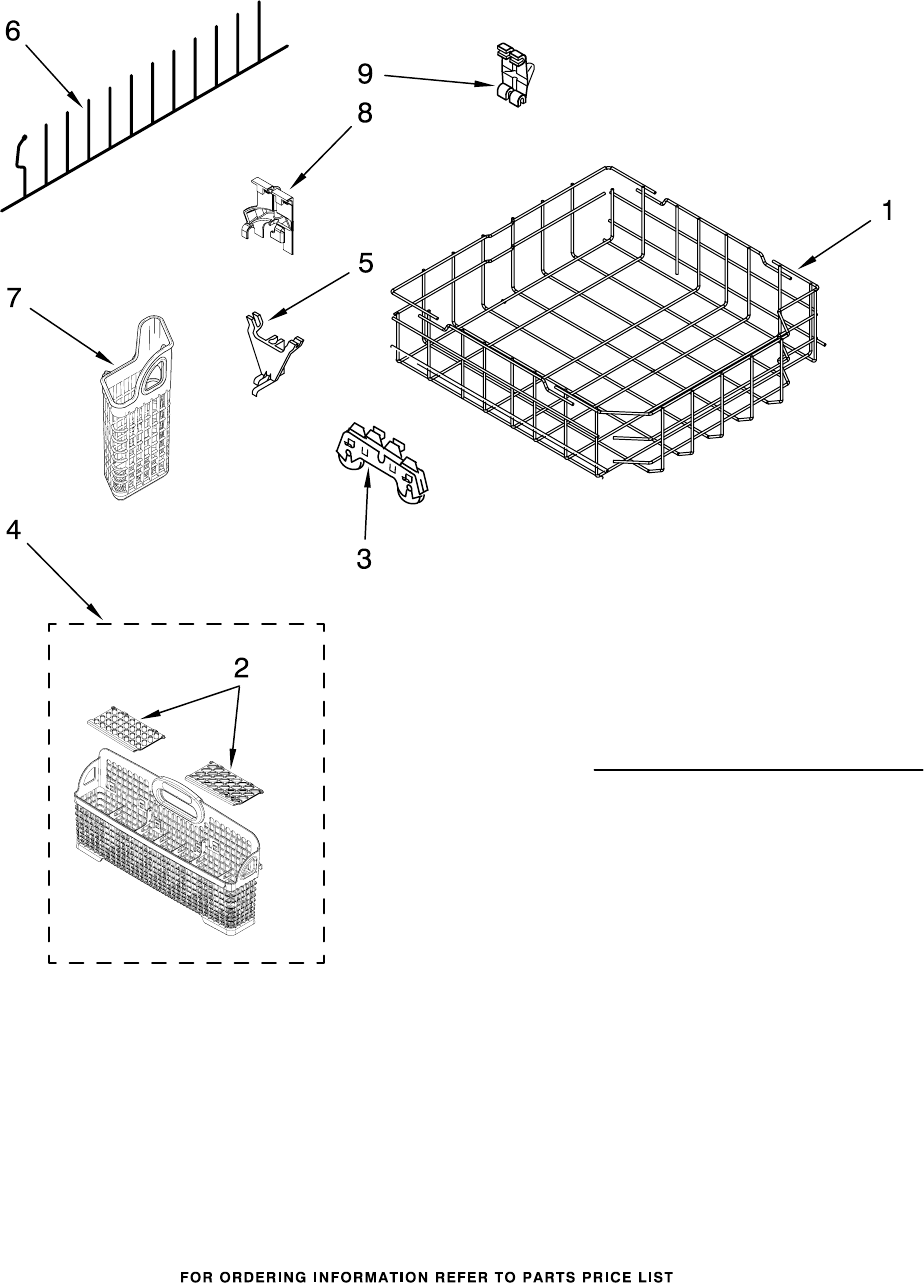

LOWER RACK PARTS

13

For Model: KUDT03FTPA3

(Panel Ready)

W10202037

Illus. Part

No. No. DESCRIPTION

1 8519680 Lower Rack

2 Lid, Basket

Silverware

8519695 Left Side

8519663 Right Side

3

W10082868

Wheel & Transport

Assembly

4 8531233 Basket,

Silverware

5

W10078227

Pivot, Tine Row

6 8519682 Tine, Row

7 8519702 Basket, Utensil

8

W10078215

Retainer, Tine Row

(Combo)

9 8531314 Retainer, Tine Row
